Plaat XVII
Table XVII

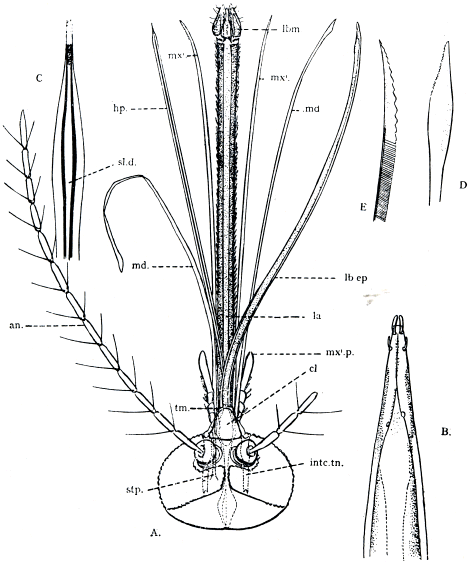

Afb. 33. Monddelen van muggen. A. kop van wijfje van Culex pipiens Linn., op de rugzijde gezien, monddelen uiteengespreid (iets schematisch); B. top van labrum-epipharynx van Anopheles-wijfje; C. top van hypopharynx van Anopheles-wijfje; D. top van mandibel van Anopheles sp.; E. top van maxille van Anopheles sp. an. antenne, cl. clypeus, hp. hypopharynx, la. labium, lb. ep. labrum-epipharynx, lbm. liptaster, md. mandibel, mx¹. maxille, mx¹p. kaaktaster, sl.d. speekselkanaal.
- Uit: Patton and Evans, Insects, ticks, mites and venomous animals. Dl. 1. fig. 52. 1929. - Brief 109[64], blz. 346, 348.
Ill. 33. Mouthparts of mosquitoes. A. dorsal aspect of head of female Culex pipiens Linn., mouth-parts displayed (slightly diagrammatic); B. end of labrum-epipharynx of female Anopheles; C. end of hypopharynx of female Anopheles; D. end of mandible of Anopheles sp.; E. end of maxilla of Anopheles sp. an. antenna, cl. clypeus, hp. hypopharynx, la. labium, lb.ep. Labrum-epipharynx, lbm. labellum, md. mandible, mx¹. maxilla, mx¹p. maxillary palp, sl.d. salivary duct. - From: Patton and Evans, Insects, ticks, mites and venomous animals. Vol. 1. fig. 52. 1929. - Letter 109[64], pp. 347, 349.
